CCCD Chip Reading and Verification via NFC

This document highlights the CCCD Chip Reading and Verification via NFC details.

Objective

The CCCD Chip Reading and Verification via NFC module extracts user information from the chip embedded in CCCD National ID(NID) card (or a Citizen ID card) and validates it against the national database.

Did you know?

Near-field communication (NFC) is a short-range wireless technology that aides communication between NFC-enabled devices in close proximity to each other.

Input	Output
The following values associated with the user's NID: • ID Number • Date of Birth • Date of Expiry	The user's Personally identifiable information (PII) extracted from the national database, the associated verification status and the suggested action for the identity verification process. You can find the details of all the output fields under the success response details section.

Prerequisites

iOS

Permissions

1. Add Privacy - NFC Scan Usage Description key in the Info.Plist file.

2. Add the following reader key in the Info.Plist file:

<key>com.apple.developer.nfc.readersession.iso7816.select-identifiers</key>
<array>
   <string>com.apple.developer.nfc.readersession.iso7816.select-identifiers</string>
   <string>A0000002471001</string>
   <string>00000000000000</string>
</array>

3. Under the Signing & Capabilities tab from xcodeproj, click on the + Capability button and add Near Field Communication capability

Android

Permissions

Add the following permission under the AndroidManifest.xml file:

<uses-feature
        android:name="android.hardware.nfc"
        android:required="true" />

<uses-permission android:name="android.permission.NFC" />

Integration

Add the following line of code to the build.gradle file along with HyperKYC:

implementation ("co.hyperverge:hvnfc-sdk:2.1.0")

Inputs

The following table provides the details of the input parameters required for the module:

Parameter	Mandatory or Optional	Data Type	Accepted Values	Description
idNumber	Mandatory	string	A valid Vietnamese citizen identification number	The twelve digit identification number of the user
dateOfBirth	Mandatory	string	Format: DD-MM-YYYY	The date of birth of the user
dateOfExpiry	Mandatory	string	Not applicable	The date of expiry of the user's identity card

Success Responses

The following section presents the successful responses generated by the module:

Read Only

The following is a success response returned when the Read Only configuration parameter for the module is set to true:

{
  "status": "success",
  "statusCode": "200",
  "metaData": {
    "requestId": "<Request_ID>",
    "transactionId": "<Transaction_ID>"
  },
  "result": {
    "details": {
      "status": 200,
      "requestId": "<Request_ID>",
      "citizenId": "<Masked_Citizen_ID>",
      "oldCitizenId": "<Masked_Old_Citizen_ID>",
      "fullName": "<Full_Name>",
      "dateOfBirth": "<Date_Of_Birth_in_DD-MM-YYYY_Format>",
      "dateOfIssue": "<Date_Of_Issue_in_DD-MM-YYYY_Format>",
      "dateOfExpiry": "<Date_Of_Expiry_in_DD-MM-YYYY_Format>",
      "gender": "<Gender>",
      "nationality": "<Nationality>",
      "ethnicity": "<Ethnicity>",
      "religion": "<Religion>",
      "placeOfOrigin": "<Place_Of_Origin>",
      "placeOfResidence": "<Place_Of_Residence>",
      "personalIdentification": "<Personal_Identification>",
      "fatherName": "<Father_Name>",
      "motherName": "<Mother_Name>",
      "partnerName": "<Partner_Name>",
      "mrz": "<MRZ_Code>",
      "faceImage": "<Base64_Encoded_Face_Image>",
      "vendorSignature": "<Base64_Encoded_Vendor_Signature>"
    },
    "summary": {
      "action": "pass",
      "details": []
    }
  }
}

Read and Verify

The following is a success response returned when the Read Only configuration parameter for the module is set to false:

{
  "status": "success",
  "statusCode": "200",
  "metaData": {
    "requestId": "<Request_ID>",
    "transactionId": "<Transaction_ID>"
  },
  "result": {
    "details": {
      "status": 200,
      "requestId": "<Request_ID>",
      "verifyRequestId": "<Verify_Request_ID>",
      "citizenId": "<Masked_Citizen_ID>",
      "oldCitizenId": "<Masked_Old_Citizen_ID>",
      "fullName": "<Full_Name>",
      "dateOfBirth": "<Date_Of_Birth_in_DD-MM-YYYY_Format>",
      "dateOfIssue": "<Date_Of_Issue_in_DD-MM-YYYY_Format>",
      "dateOfExpiry": "<Date_Of_Expiry_in_DD-MM-YYYY_Format>",
      "gender": "<Gender>",
      "nationality": "<Nationality>",
      "ethnicity": "<Ethnicity>",
      "religion": "<Religion>",
      "placeOfOrigin": "<Place_Of_Origin>",
      "placeOfResidence": "<Place_Of_Residence>",
      "personalIdentification": "<Personal_Identification>",
      "fatherName": "<Father_Name>",
      "motherName": "<Mother_Name>",
      "partnerName": "<Partner_Name>",
      "mrz": "<MRZ_Code>",
      "faceImage": "<Base64_Encoded_Face_Image>",
      "vendorSignature": "<Base64_Encoded_Vendor_Signature>"
    },
    "summary": {
      "action": "pass",
      "details": []
    }
  }
}

Success Response Details

Read Only

The following table provides the details of the fields in a success response when the module has a Read Only configuration:

Field	Type	Description
status	number	The status of the request.
requestId	string	The request identifier for HyperVerge's internal reference
citizenId	string	The user's 12-digit National Identification Number (NID).
oldCitizenId	string	The user's old 9-digit National Identification Number (NID).
fullName	string	The user's complete name (Vietnamese).
dateOfBirth	string	The date of birth in the format dd-mm-yyyy.
dateOfIssue	string	The date of issue in the format dd-mm-yyyy.
dateOfExpiry	string	The date of expiry in the format dd-mm-yyyy.
gender	string	The user's gender (M: Male, F: Female).
nationality	string	The user's nationality(default: Việt Nam).
ethnicity	string	The user's ethnicity from the 64 ethnic groups in Vietnam.
religion	string	The user's religion.
placeOfOrigin	string	The user's hometown.
placeOfResidence	string	The user's living address at the time of registration.
personalIdentification	string	A personal mark of identity.
fatherName	string	The full name of the user's father.
motherName	string	The full name of the user's mother.
partnerName	string	The full name of the user's spouse.
faceImage	base64	The image on the Vietnam National Identification Document (NID).
mrz	string	The MRZ code of the individual's document
vendorSignature	string	The base64-encoded vendor signature

Read And Verify

In addition to the fields present in a success response for a Read Only configuration, a success response for the Read and Verify configuration contains the following fields:

Parameter	Type	Description
verifyC06	boolean	The verification status (true/false) of the user details against the national database.
vendorSignature	string	The base64-encoded vendor signature
vendorVerifySignature	string	The base64-encoded vendor verification signature
c06VerifySignature	string	The base64-encoded C06 verification signature

Summary Object

The following table provides the details of the summary object relevant to both the Read and the Read and Verify configurations.

Object	Field	Expected Values	Description
summary	action	pass, fail, or manualReview	pass - The user verification is approved for further processing fail - The user verification is rejected from further processing manualReview - The user verification requires a manual review by a reviewer You can find the sample responses corresponding to each of the actions under the Actions section.
	details	The relevant code and message field-value pairs	The "details" array consists of the code and message fields in case of an error response.

Actions

The following are codes corresponding to each type of action value supported by the module.

Pass

This is the response where the application is approved for further processing.

{
  "summary": {
    "action": "pass",
    "details": []
  }
}

Fail

This is the response where the application is rejected.

{
  "summary": {
    "action": "fail",
    "details": [
      {
        "code": "001",
        "message": "Missing input(s)"
      }
    ]
  }
}

Manual Review

This is the response where the application is sent to manual review.

{
  "summary": {
    "action": "manualReview",
    "details": [
      {
        "code": "001",
        "message": "Missing input(s)"
      }
    ]
  }
}

Error Responses

The following section contains error responses generated by the module.

Missing Parameter(s)

{
  "status": "failure",
  "statusCode": 400,
  "metaData": {
    "requestId": "<Request_Identifier>",
    "transactionId": "<Transaction_Identifier>"
  },
  "result": {
    "summary": {
      "action": "manualReview",
      "details": [
        {
          "code": "001",
          "message": "Missing parameter(s)"
        }
      ]
    },
    "error": "Missing parameter(s)"
  }
}

NFC Read Failure

{
  "status": "failure",
  "statusCode": 422,
  "metaData": {
    "requestId": "<Request_Identifier>",
    "transactionId": "<Transaction_Identifier>"
  },
  "result": {
    "summary": {
      "action": "manualReview",
      "details": [
        {
          "code": "020",
          "message": "Data Integrity check failed"
        }
      ]
    },
    "error": "Data Integrity check failed"
  }
}

External Server Downtime

{
  "statusCode": 503,
  "status": "failure",
  "message": "External source downtime",
  "error": "EXTERNAL_DOWNTIME"
}

Error Response Details

An error response from the module contains a failure status, with a relevant code and error message. The following table lists all the error responses.

Status Code	Error Code	Message	Description
400	001	Missing parameter(s)	The request has at least one missing input. Please contact the HyperVerge team for resolution
503	002	External source downtime	The external vendor system is temporarily unavailable. Please try again later
503	003	External source downtime	The external vendor system is temporarily unavailable. Please try again later
503	004	External source downtime	The external vendor system is temporarily unavailable. Please try again later
503	005	External source downtime	The external vendor system is temporarily unavailable. Please try again later
503	006	External source downtime	The external vendor system is temporarily unavailable. Please try again later
503	007	External source downtime	The external vendor system is temporarily unavailable. Please try again later
503	008	External source downtime	The external vendor system is temporarily unavailable. Please try again later
503	009	External source downtime	The external vendor system is temporarily unavailable. Please try again later
400	010	Duplicated data in unique field	Duplicate values were found in a field expected to be unique. Check the input and resubmit
422	011	Request ID mismatch for C06 validation - No data found	The provided Request ID does not match any existing records. Verify and resubmit the correct Request ID
503	012	External source downtime	The external vendor system is temporarily unavailable. Please try again later
503	013	External source downtime	The external vendor system is temporarily unavailable. Please try again later
422	014	Not found transaction (recheck)	The requested transaction was not found. Verify the transaction details and try again
503	015	External source downtime	The external vendor system is temporarily unavailable. Please try again later
422	016	Source API has no corresponding card data in the system	The API could not find any matching card data for the provided input
503	017	External source downtime	The external vendor system is temporarily unavailable. Please try again later
503	018	External source downtime	The external vendor system is temporarily unavailable. Please try again later
500		Internal Server Error	An unexpected error occurred on the server. Please contact the HyperVerge team for support
422	020	Data integrity check failed	Invalid NFC data (SOD, COM, DGxx)
429		Rate limit error	Too many requests were made in a short period. The limit is 200 requests per minute
	106	NFC permission denied	Permission to use NFC not granted
	120	NFC not detected on this device	NFC not present/detected in the device
	121	Authentication Failure	Could not read due to invalid chip
	122	Card got disconnected	Connection disconnected with chip during scanning
	125	Incomplete scan	OS returns success scan status, but the data is incomplete. Available on SDK version ≥ 0.31.0

Application View

The following section showcases screens from a sample application featuring the CCCD Chip Reading and Verification via NFC module, accessible within the Applications tab of the HyperVerge dashboard.

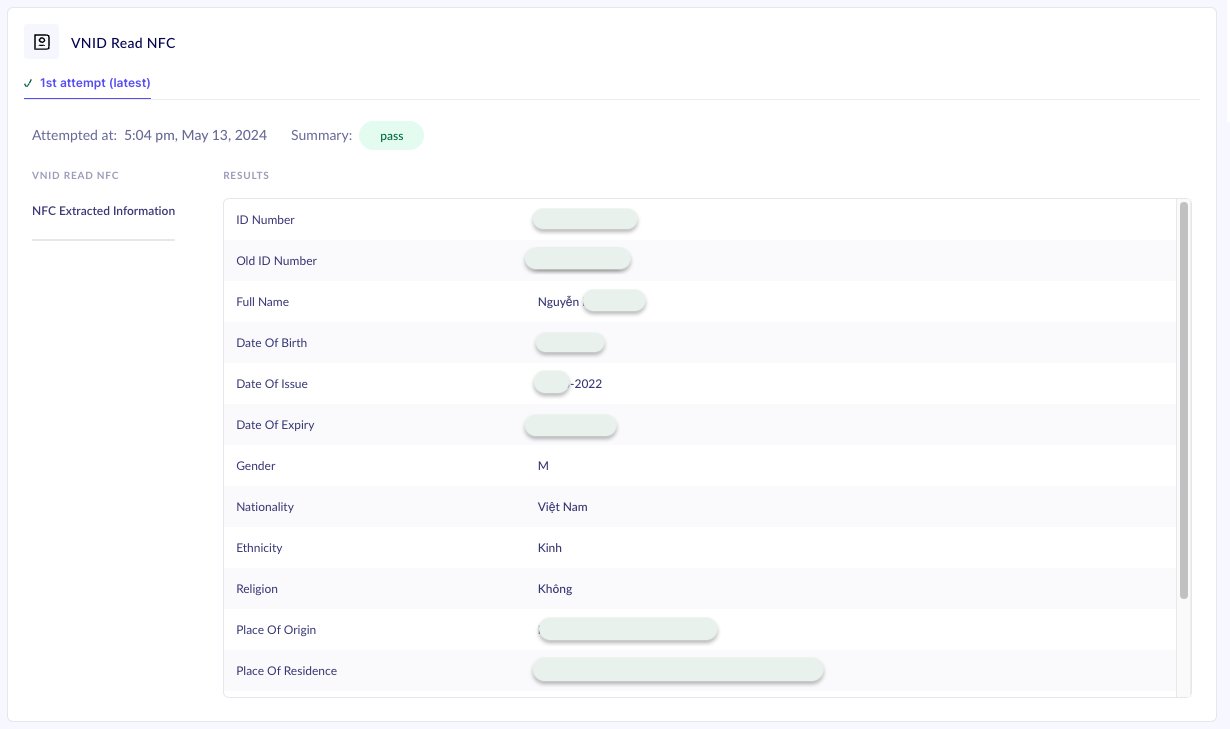

Read

A snapshot of a workflow configured with the Read configuration.

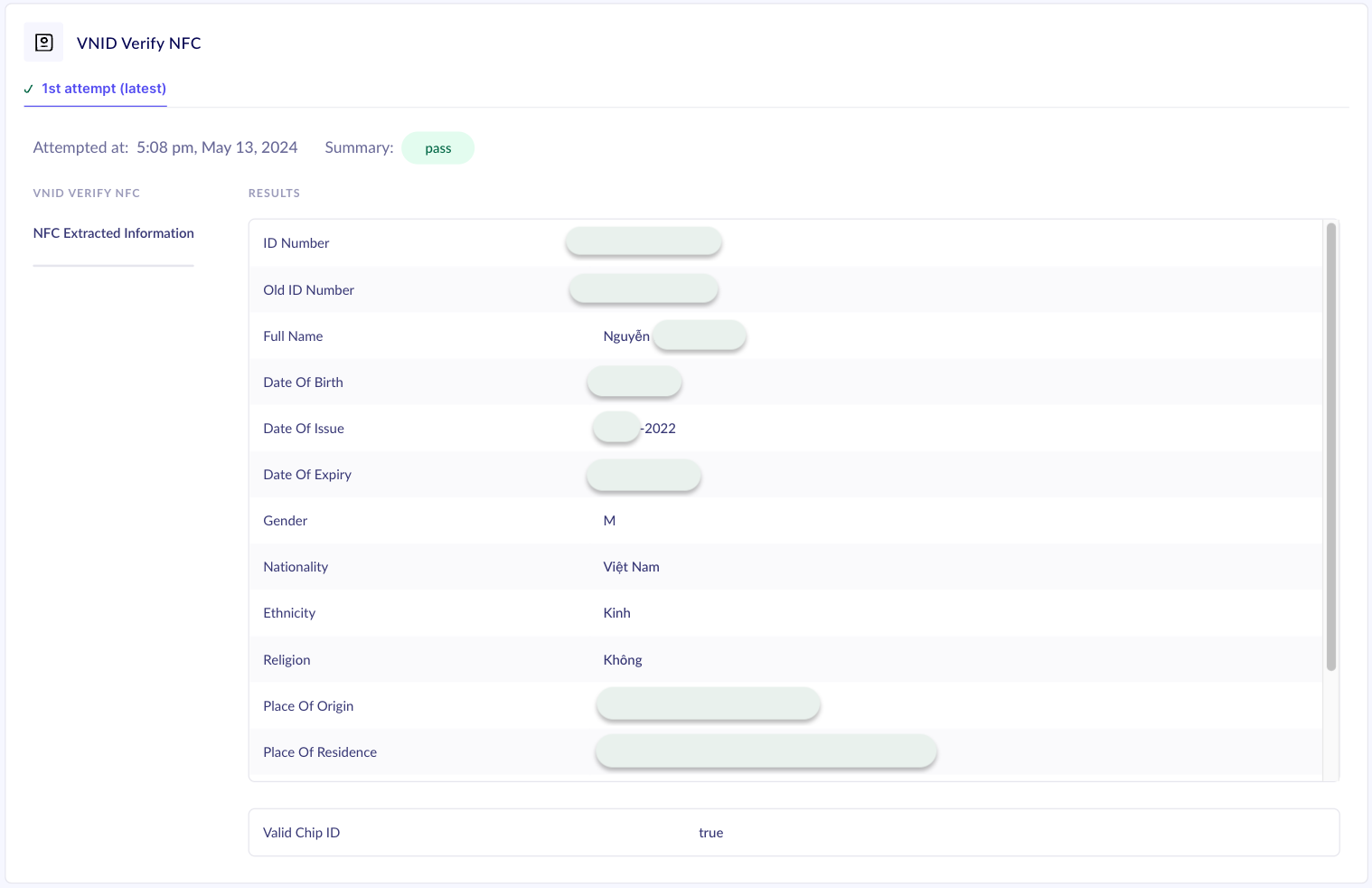

Read and Verify

A snapshot of a workflow configured with the Read and Verify configuration.

caution

• The image only contains some of the output fields for representation. Please refer the success response details section for the complete list of supported fields.
• The PII in the image has been masked for representation purposes.
